How 24 FPS Became the Cinematic Standard

Introduction

The familiar cadence of motion we experience in cinema today - that distinctly "filmic" look that has defined our visual storytelling language for generations - didn't emerge by accident. The standardization of 24 frames per second (FPS) represents a fascinating convergence of technological limitations, economic considerations, and aesthetic choices that fundamentally shaped the art form we know today. While modern digital filmmaking has introduced numerous alternatives, the 24 FPS standard remains cinema's dominant visual language, carrying with it over a century of creative and technical evolution.

This article explores the multifaceted journey of how 24 FPS became cinema's universal standard, examining the technological constraints of early filmmaking, the pivotal transition from silent to sound cinema, and the lasting perceptual and aesthetic implications of this technical decision. We'll investigate not only the mechanical reasons behind the standardization but also how this technical specification created what we recognize as the "cinematic look" - a visual aesthetic that continues to influence filmmaking despite our contemporary ability to capture motion at virtually any frame rate.

The Early Variable Frame Rate Era (1890s-1920s)

Hand-Cranked Cameras and Variable Frame Rates

The earliest motion picture cameras, developed in the late 19th century by pioneers like Thomas Edison, the Lumière brothers, and Georges Méliès, relied on manual operation. Cinematographers literally hand-cranked film through these early cameras, creating inherent inconsistencies in frame rates. During this period, "standard" frame rates were more theoretical than practical.

Early filmmakers aimed for approximately 16-18 FPS, though actual rates varied considerably based on:

• The camera operator's cranking speed
• The mechanical design of the specific camera model
• Environmental conditions affecting film transport
• Dramatic intent (speeds were sometimes intentionally varied)

This variability created significant projection challenges. Projectionists needed to match playback speeds to the original filming rate, which was rarely documented precisely. This led to the common phenomenon of early silent films appearing unnaturally fast to modern viewers - many silent films were shot at lower frame rates but later projected at standardized higher speeds.

The Economics of Celluloid

Economic considerations significantly influenced early frame rate decisions. In the industry's infancy, film stock represented an enormous expense. The nitrate celluloid film base was costly to manufacture, and every additional frame per second multiplied production expenses:

• Additional raw film stock costs
• Increased development chemical consumption
• Extended processing time
• Added storage requirements
• Lengthened projection reels

Operating at lower frame rates (typically 16-18 FPS) during the silent era represented a significant cost optimization, allowing studios to conserve precious celluloid while still achieving the illusion of continuous motion.

The Persistence of Vision and Flicker Fusion

The technical decisions around frame rates were fundamentally informed by human visual perception. Two key phenomena dictated minimum viable frame rates:

1. Persistence of Vision: The human eye retains an image for approximately 1/25th of a second after it disappears. This physiological trait allows discrete images to blend together into the perception of continuous motion when presented in quick succession.
2. Critical Flicker Fusion Threshold: The frequency at which an intermittent light stimulus appears to be completely steady to the average observer. For humans, this threshold typically falls between 40-60 Hz.

Early filmmakers discovered that 16 FPS represented the approximate minimum threshold for creating convincing motion, though this frame rate could still produce noticeable flickering. Projectionists employed a rotating shutter mechanism that briefly blocked the light between frames, effectively doubling the display frequency. For a film shot and projected at 16 FPS, the three-bladed shutter created a 48 Hz display rate, exceeding the flicker fusion threshold for most viewers.

Despite these adaptations, the low frame rates of early cinema restricted the portrayal of fast motion, resulting in the characteristic "jerky" appearance of many silent films when objects or camera movements exceeded certain speeds.

The Sound Revolution and Frame Rate Standardization (1926-1930)

Sound Synchronization Challenges

The introduction of synchronized sound represented the most significant catalyst for frame rate standardization. Warner Bros.' release of "The Jazz Singer" in 1927 marked the beginning of the sound era, but this technological innovation presented formidable technical challenges:

Early sound recording systems utilized several different methods for synchronization:

1. Sound-on-disc systems (like Vitaphone): These recorded audio on phonograph records that needed to maintain perfect synchronization with the film projection.
2. Sound-on-film systems (like Movietone and Photophone): These recorded optical sound patterns directly onto the film strip alongside the visual frames.

Both systems required absolute consistency in film speed to maintain audio synchronization. Any variation in frame rate would cause the sound and image to drift apart, creating an unacceptable viewing experience.

The Technical Rationale for 24 FPS

The selection of 24 FPS specifically resulted from a complex calculus of technical constraints:

1. Minimum quality threshold: Engineers determined that 24 FPS represented the minimum frame rate that could adequately capture moderately fast motion without excessive strobing or judder.
2. Sound fidelity requirements: Early optical sound systems required a minimum linear speed of film movement to accurately reproduce the frequency range necessary for intelligible speech and music. This minimum speed, combined with standard film dimensions, mathematically favored rates around 24 FPS.
3. Electrical synchronization: The standardization of 24 FPS aligned with the electrical grid frequencies in North America (60 Hz) and Europe (50 Hz). Motor-driven cameras and projectors could maintain precise speeds by synchronizing with alternating current frequencies:
   • In 60 Hz regions: 24 FPS could be achieved with a 5:2 ratio mechanism
   • In 50 Hz regions: Special adaptations were developed to maintain consistency
4. Backwards compatibility: 24 FPS represented a modest increase from silent film rates (typically 16-18 FPS), allowing for some backward compatibility with existing equipment through gear ratio adjustments.
5. Economic compromise: Higher frame rates would have consumed more expensive film stock, while lower rates compromised motion quality and sound reproduction.

The Industry Standardization Process

The standardization of 24 FPS did not occur instantaneously but emerged through a process of industry consensus:

1. In 1926-1927, as the major studios began investing heavily in sound technology, engineering departments conducted extensive tests to determine optimal frame rates for sound synchronization.
2. The Society of Motion Picture Engineers (SMPE, later SMPTE) formed technical committees to evaluate competing standards and technologies.
3. In 1929-1930, formal industry standards were established by SMPE that codified 24 FPS as the universal standard for professional cinema production and exhibition.
4. Camera and projector manufacturers rapidly adapted their equipment designs to conform to the new standard, often providing conversion kits for existing equipment.
5. By 1930, the 24 FPS standard had achieved near-universal adoption in the American film industry, with European markets following closely behind.

This standardization represented a watershed moment in cinema history. For the first time, films could be produced with the knowledge that they would be projected at precisely the same speed in any theater worldwide, enabling true consistency in the cinematic experience.

Technical Implementation and Equipment Evolution

Camera Mechanisms and Motor Drives

The transition to synchronized sound necessitated fundamental changes to camera technology:

1. Hand-cranking to motor drives: The variable human-powered cranking system was replaced with precision electric motors that maintained exact frame rates.
2. Blimping and noise reduction: Early sound cameras required extensive soundproofing (camera "blimps") to prevent mechanical noise from being recorded by sensitive microphones.
3. Synchronization systems: Cameras were equipped with synchronization mechanisms directly linked to sound recording equipment, including:
   • Interlocked motor systems
   • Sync pulse generators
   • Precision tachometers for speed monitoring
4. Crystal synchronization: Later refinements introduced crystal-controlled motor systems that provided frame rate accuracy to within 0.001%, essential for lengthy productions with multiple cameras.

The Mitchell Camera Corporation, ARRI, and Bell & Howell emerged as leading manufacturers of 24 FPS sound-synchronized camera systems, with their designs emphasizing the paramount importance of stable, consistent frame rates.

Evolution of Camera Technology

Hand-Cranked Camera

Variable rate (approx. 16-18 FPS)

Operator dependent speed

Early Sound Camera

Fixed 24 FPS rate

Electric motor driven

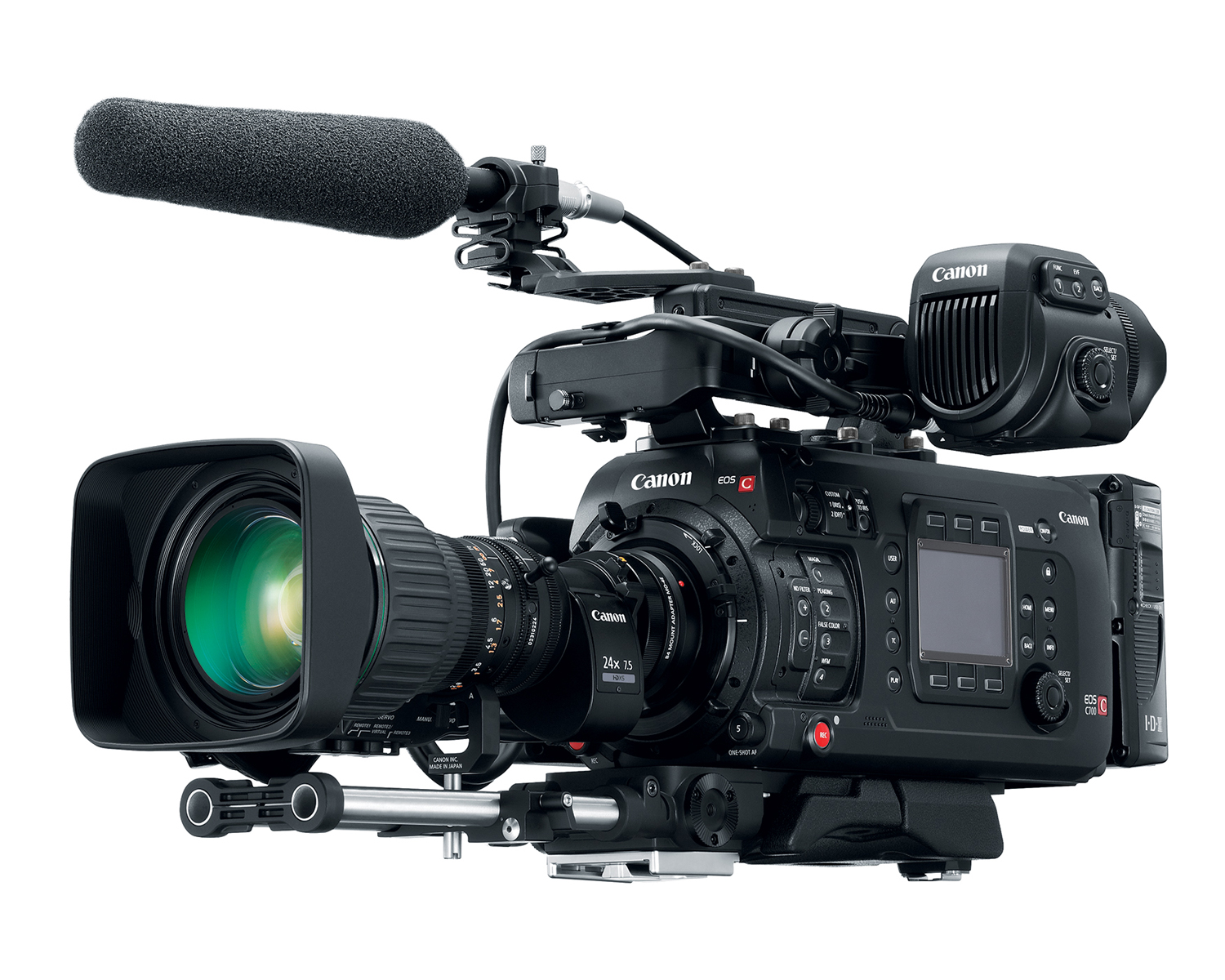

Modern Film Camera

Crystal-synchronized 24 FPS

High precision timing

Projection Technology Adaptations

Projection systems underwent equally significant transformations:

1. Motor-driven projectors: Hand-cranked projection gave way to synchronized electric motors governed by speed control systems.
2. Three-bladed shutters: The standard projector shutter design showed each frame 2-3 times, creating an effective display rate of 48-72 Hz, well above the flicker fusion threshold.
3. Sound reproduction integration: Projectors incorporated optical sound heads or synchronization systems for external sound playback devices.
4. Theater standardization: Projection booths were rebuilt to accommodate the new technology, with stringent specifications for power supply stability to maintain consistent projection speeds.

These technical specifications became codified in industry standards that guaranteed compatibility between production and exhibition technologies across the global film industry.

The Perceptual Science of 24 FPS

Motion Blur and the Shutter Angle

The characteristic look of 24 FPS cinematography results not just from the frame rate itself but from the interaction between frame rate and shutter angle:

1. Exposure time and motion blur: Traditional film cameras used a rotating shutter mechanism where exposure time was determined by the shutter angle:
   • A 180° shutter (the most common) created an exposure time of 1/48th second at 24 FPS
   • This relatively long exposure produced natural motion blur that smoothed movement between frames
2. The cinematic look: This specific combination of frame rate and motion blur created what we now recognize as the "cinematic look" - a distinctive visual aesthetic characterized by:
   • Noticeable but not excessive motion blur
   • Subtle temporal sampling that differs from video or higher frame rates
   • A slight dreamlike quality to rapid movements
3. Perceptual implications: Neurological research suggests that 24 FPS with appropriate motion blur closely aligns with how the human visual system processes complex motion, particularly for narrative engagement rather than precise motion analysis.

The 24 FPS standard thus created a specific relationship between temporal sampling and motion representation that became integral to cinematic visual language.

The Aesthetic Consequences

The standardization of 24 FPS had profound implications for cinematic aesthetics:

1. Directing for the frame rate: Filmmakers learned to work within the constraints of 24 FPS:
   • Camera movement techniques evolved to accommodate the frame rate's limitations
   • Action sequences were choreographed with an awareness of how motion would be captured
   • Lighting techniques developed to complement the motion characteristics
2. The "film look": Over decades, audiences became accustomed to the specific temporal characteristics of 24 FPS presentation:
   • Subtle stroboscopic effects during rapid movement
   • Characteristic motion blur patterns
   • A perceived separation from "video" or "broadcast" aesthetics
3. Psychological conditioning: Multiple generations of viewers have been conditioned to associate the 24 FPS aesthetic with narrative cinema, creating a powerful psychological connection between this technical specification and the emotional experience of cinema.

The standardization of 24 FPS thus moved beyond technical necessity to become a fundamental component of cinematic language, influencing everything from camera movement to editing rhythms.

Modern Adaptations and Alternatives

Television Standards and Pull-down Techniques

The 24 FPS standard created significant challenges for television broadcast, which operated at different frame rates:

1. NTSC territories (primarily North America and Japan): Television operated at approximately 29.97 FPS, requiring a complex 3:2 pull-down process to convert 24 FPS cinema content:
   • Film frames were distributed unevenly across video fields
   • This created characteristic judder during camera pans
   • Some frames were displayed for longer durations than others
2. PAL/SECAM territories (Europe and much of Asia/Africa): Television operated at 25 FPS, requiring films to be slightly sped up (approximately 4% faster) for broadcast, affecting both visual timing and audio pitch.

These compromises were widely accepted by audiences who became accustomed to the conversion artifacts, though they represented significant departures from the original theatrical presentation.

Digital Cinema and Frame Rate Flexibility

The digital revolution in filmmaking has technically freed cinema from the mechanical constraints that originally necessitated the 24 FPS standard:

1. High frame rate (HFR) experiments: Directors like Peter Jackson ("The Hobbit" at 48 FPS) and Ang Lee ("Billy Lynn's Long Halftime Walk" at 120 FPS) have explored higher frame rates, seeking:
   • Reduced motion blur
   • Enhanced clarity in fast movement
   • Greater depth perception
   • Improved 3D experience
2. Variable frame rate capabilities: Modern digital cameras can capture at virtually any frame rate, enabling:
   • Frame-specific timing for special effects
   • Subtle speed adjustments within scenes
   • Format-appropriate capture for different distribution channels
3. Audience resistance to change: Despite these technical capabilities, audience reception to higher frame rates has been mixed:
   • Many viewers report that higher frame rates appear "video-like" or "too real"
   • The reduction in motion blur can create a perceptual disconnect for audiences accustomed to 24 FPS aesthetics
   • Critics have noted that higher frame rates can diminish the "dreamlike" quality that has long been associated with cinema
4. Gaming and virtual reality: Adjacent visual media have embraced higher frame rates (60 FPS and above), highlighting the context-specific nature of optimal frame rates for different viewing experiences.

Despite these alternatives, 24 FPS remains the predominant standard for theatrical feature films, demonstrating the enduring power of this technical specification as an aesthetic choice rather than merely a technical limitation.

Conclusion: The Enduring Legacy of 24 FPS

The standardization of 24 FPS nearly a century ago represents much more than a technical footnote in cinema history. What began as a practical compromise between technological constraints, economic considerations, and perceptual requirements evolved into a defining characteristic of cinematic aesthetics.

The persistence of 24 FPS in modern filmmaking – an era where virtually any frame rate is technologically possible – demonstrates how deeply this technical specification has become embedded in our visual culture. Directors who continue to shoot at 24 FPS do so not because of technical limitations, but because this frame rate has become inextricably linked with the emotional and perceptual experience we identify as "cinematic."

As we move further into the digital age, the 24 FPS standard serves as a fascinating case study in how technological constraints can shape artistic expression and audience expectations. The standard that emerged from the practical challenges of early sound synchronization now represents one of cinema's most enduring aesthetic signatures – a testament to how technical specifications can transcend their utilitarian origins to become essential elements of an art form's vocabulary.

Whether future generations will maintain this technical tradition or eventually embrace new temporal paradigms remains an open question, but the story of how 24 FPS became the cinematic standard offers valuable insights into the complex relationship between technology and art that continues to define the evolution of visual storytelling.
